Rebuilt with 2 year warranty !!

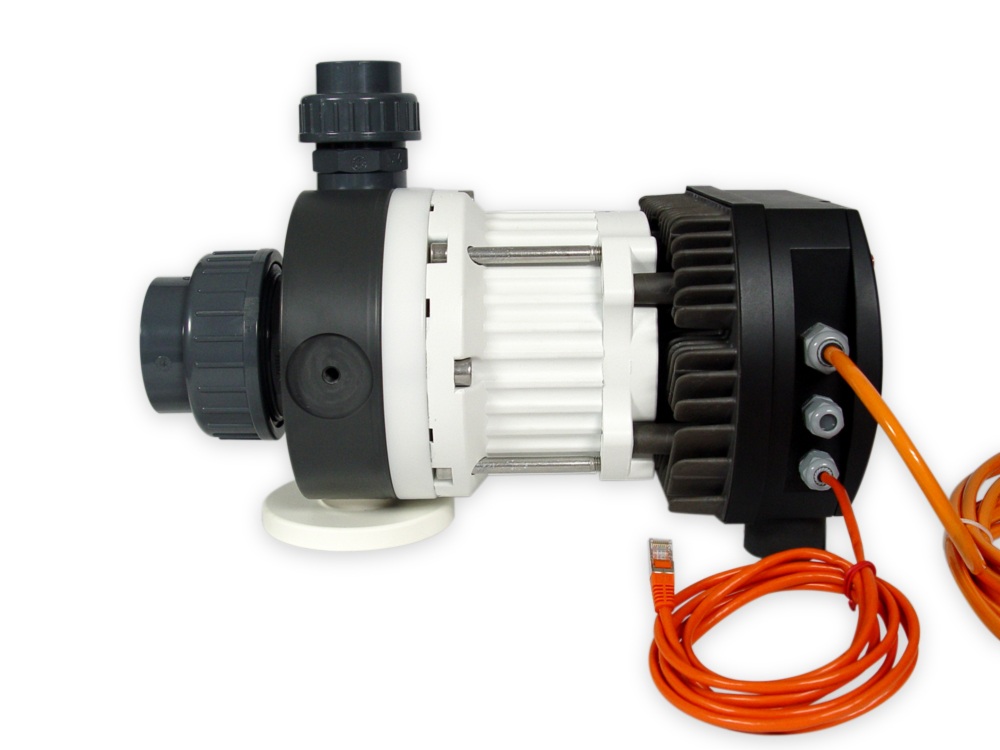

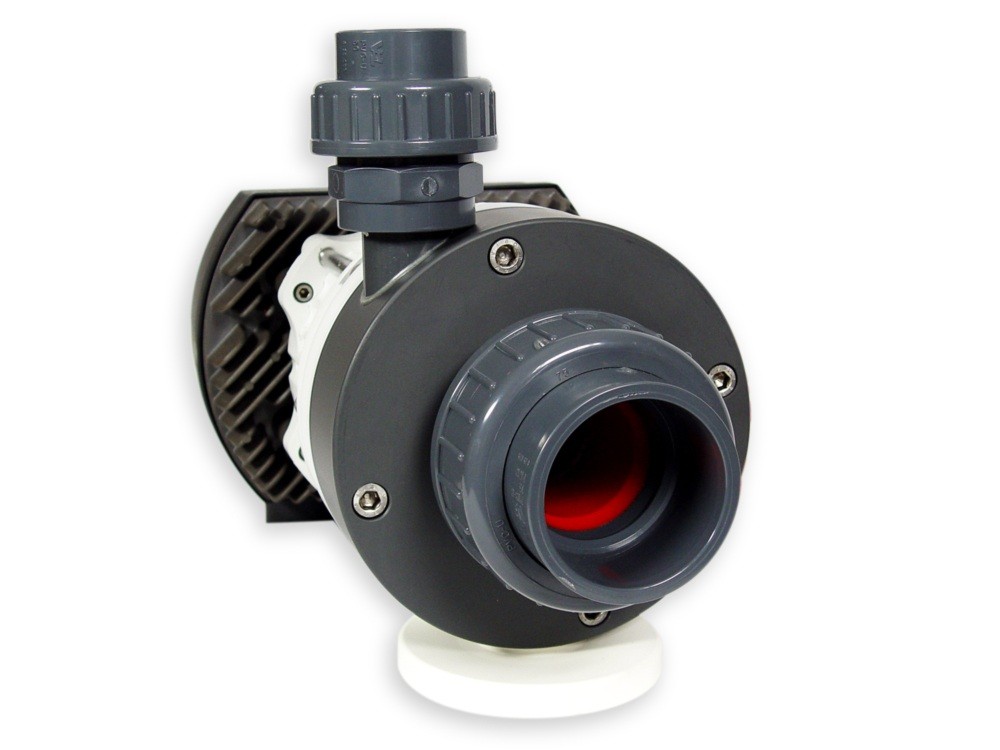

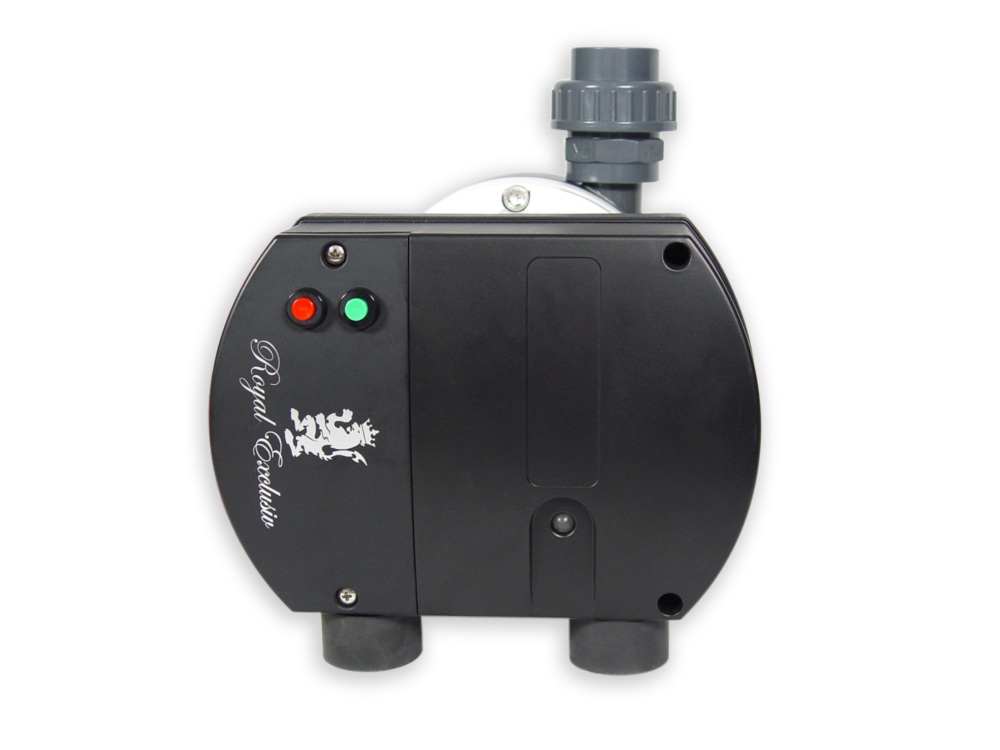

Red Dragon® 4 Dreamliner 500
Technical data Red Dragon® 4 Dreamliner 500:
max. 28.000 Ltr. / 16.5 mtr. pressure height
490 Watt power consumption at full load
intake side 75 mm – pressure side 50 mm
adjustable via Network cable / RJ45 connecting
operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available)
only for external use / freshwater !
Weight pump: 18 kg
Height of intake side: center 120 mm
Dimension pump: 290 mm breit / 440 mm lang / ~ 300 mm hoch
Data_sheet_and_spare_parts.pdf
- Red Dragon® 4 pumps are delivered ex-works with 50% of the nominal power of the software control
- Values are always changeable via Ethernet interface (more information in the owner’s manual)
- incl. 5 m mains cable, suitable for wet rooms, VDE tested
- Motor in IP 44 splash waterproof design
- Incl. complete standard fittings DIN 50 to 110 mm
- M10 DIN 912 screws in stainless steel quality
- Motor made in Europe,
pump configuration made in Germany, by Royal-Exclusiv® - Including rubber buffer for decoupling, extremely low noise execution
- Including interfaces, 24 Volt digital, Ethernet or NC inputs
