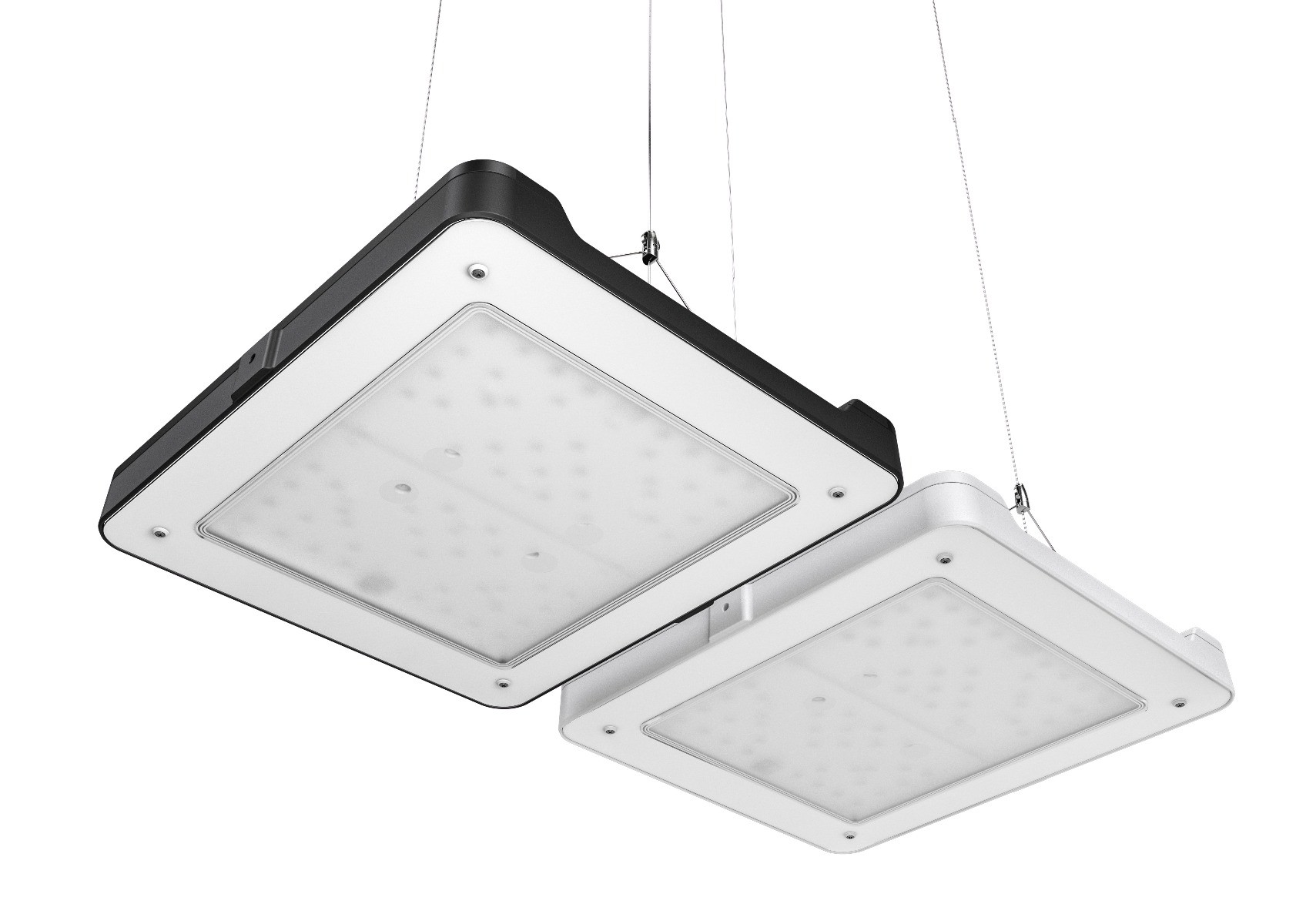

Philips CoralCare LED fixture
The unique features of CoralCare are:
• Wide spectral range – optimized for coral growth and natural reef appearance
• Perfect light balance – unique homogeneous light distribution and color mixing solution
• Low energy consumption thanks to highly efficient LEDs
• Easy to control – By intelligently combining various LEDs with different wavelengths, we have simplified the set-up of the lighting controller for the user. As a result, the user only needs to select the desired color point and intensity, without having to worry about the optimal light quality for coral growth and beautification.
• Low maintenance – long-life robust design and materials
• Easy to install – driver integrated in fixture, hanging kit included, and computer interface
Specifiations
– 190W – Dimmable
– 220-240V – IP65
– 50-60 Hz – 10 kg
Based on user experience tests
with aquaria depths up to 90cm:
– Surface coverage (normal) 100 x 80cm
– Surface coverage (extreme) 80 x 60cm
LED brand Lumileds
LED # 104
LED type 40 x Luxeon TX 6500K/70
32 x Luxeon T Royal Blue
16 x Luxeon UV 420nm
8 x Luxeon Rebel Cyan
8 x Luxeon Rebel Phosphor Converted Amber
Customized kitting & binning process to ensure
color consistency & wide spectral distribution
Channel 1 32 x Luxeon T Royal Blue
16 x Luxeon UV 420nm
Channel 2 40 x Luxeon TX 6500K/70
8 x Luxeon Rebel Cyan
8 x Luxeon Rebel Phosphor Converted Amber
Maximum current
channel 1 – 2
600mA
Luminous flux 9313 Lm
Irradiance 58.77W optical power
Color temperature 6500K up to saturated blue
Input power 187.18W
WPE (system) 31,40%
100% Light output
color point
X=0.218 – Y=0.146
