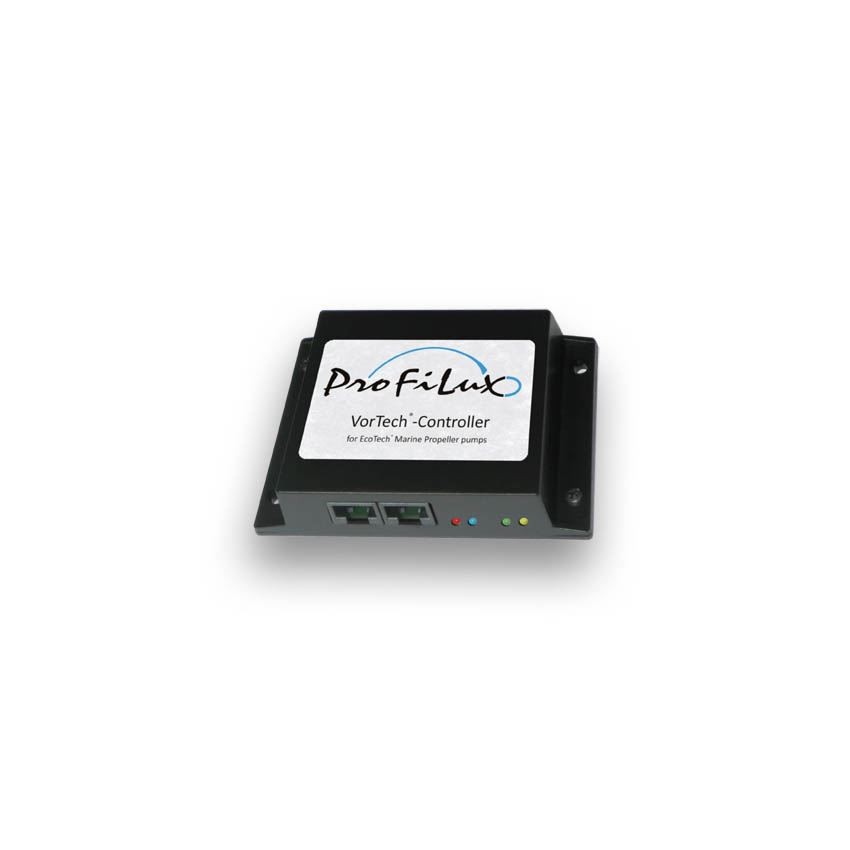

With our VorTech-Controller, ProfiLux 3 and 4 Controllers are able to independently operate up to 11 radio controlled VorTech® current pumps from EcoTech Marine®. The VorTech Controller is connected via PAB (ProfiLux Aquatic Bus, ProfiLux 3 only) and requires no additional power supply.
Function Overview
- Supports all VorTech operating modes
- Constant Speed
- Lagoon Random Mode
- Reef-Crest Random Mode
- Short Pulse Mode
- Long Pulse Mode
- Feed Modes
- Battery Backup-Modes
Moreover, the following modes are supported for EcoSmart pumps
- Tidal Swell Mode (EcoSMART TSM)
- Nutrient Transport Mode (EcoSMART NTM)
Additional Features
- 11 independent channels for 11 VorTech pumps.
- In addition to the VorTech modes, all built-in wave functions of the ProfiLux can also be used.
- Possible future firmware-updates of pumps and VorTech-Controller for further enhancements .
- The VorTech controller is automatically detected.
- Pump assignments can be changed.
- The operational mode can be varied through the day. Define up to 12 time intervals where different settings are active.
- 2 PAB-ports for a flexible bus wiring.
- 4 Indicator LEDs for PAB- and Pump-States.
- No extra power supply needed (Bus-powered).
