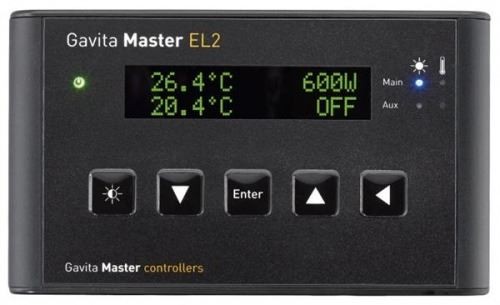

Using a Gavita Master controller to control your e-series fixtures offers you maximum control, ease of use, plug and play installation and safety. Just connect the controller cables to the fixtures with the included T-splitter (see diagram), set the dials on the fixtures to EXT (External control), plug the controller and the fixtures directly into mains and you are set to go.
Note: The Plasma Fixtures can’t be dimmed through the Master Controller.
The controller can switch all the interconnected fixtures on and off with its internal timer, adjust them to your required output level (in percentage or exact output power) and even simulate sunrise and sunset to gradually adjust the climate in your grow room when your lights go on or off. This electronic controller replaces expensive lighting timers and contactors while preventing ballast current in-rush when switching on your lights.
Two very important features are the autodim function and emergency shut-down. When the temperature in your grow room rises beyond the control level of your climate control your crop can be damaged beyond recovery. The temperature probe senses this and will automatically dim the lights to not overshoot your safe temperature, and maintain it. The display and warning LED indicate when this happens, and also indicate if this has happened while you were away so you can correct the problem. If for any reason your climate control completely fails and the temperature rises to unacceptable levels the system will perform an emergency shutdown of all connected equipment. The alarm contact of the controller can be connected to your alarm system for instant notification.

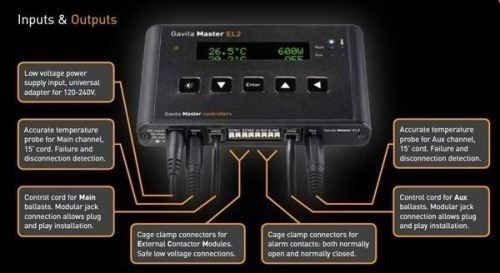

You can connect all your e-series fixtures to one controller, even divided in 2 separate rooms with their own temperature sensor for auto-dim at high temperature and emergency shutdown at extreme temperature. For auxiliary equipment you can connect up to two accessory Gavita ECM contactor modules, one to switch equipment when lights are on (for example a humidifier, CO2 equipment or air conditioning) and one for during lights off (for example a room heater).
Features & Benefits
– plug playNo need for a switchboard
– No high inrushes (ballast is always stand-by)
– Easy and safe installation (low voltage device)
– Protected against shortcuts
– Double temperature safety feature (autodim/auto shutdown)
– External alarm connection (txt/e-mail/alarm)
– For 80 ballasts, or 2×40 in two 12/12 rooms
– For DigiStar and Pro-lines e-series, incl. LEP
– Sunrise/sunset built in (0-30 mins)
– Show output in % or Watts
– Celsius or Fahrenheit and 24 hr/AM/PM
– Calibrate temperature sensors
