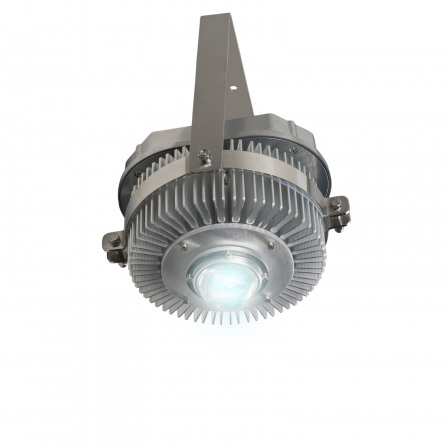

The lights are equipped with 200 W LED chips (Epistar).
The light beam is bundled with a lense to 90°. The luminous flux of the 200 W light is app. 20.000 lumen. These lights could replace metal halogen damp lights from 400 W.
The control gear unit is placed in a splash-proof body on the light. The control gear (Meanwell) could be dimmed with a 0 – 10 V control – e. g. with the Aqua Medic Qube control.
The LEDspots will be cooled passively by a corrosion resistant aluminium cooling element.
It can be hang up on the central loop with a chain or attached with a holder out of polished stainless steel on the ceiling. Then you can adjust the angle.
Luminous flux
app. 20,000 Lm
Light colour
app. 6,000 K – daylight
app. 12,000 K
app. 20,000 K – blue
Beam angle
app. 60°, (90°, 120°)
Ø
app. 320 mm
Height
app. 480 mm
Weight
app. 8 kg
optional:
FlapSet LEDspot
lense LEDspot
Qube control
video
