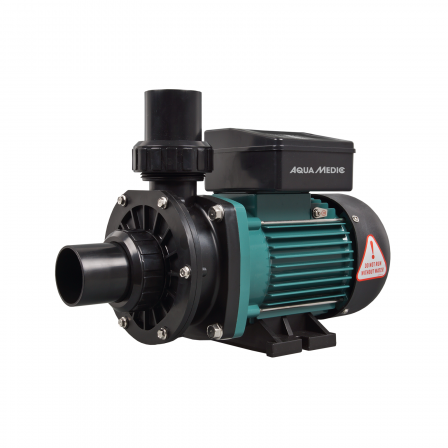

Circulation pump AM PRO 50, 75, 100
The circulation pumps in the AM PRO series are powerful with high performance. They have low energy consumption and operate at a low decibel volume. Minimal maintenance is necessary. The AM PRO pumps have a plastic housing. The axle is sealed with a mechanical seal. The pumps must be dry mounted.
Features:
– Asynchronous, two-pole motor
– Protection type IP X5
– Integrated overload protection
– Highly effective cooling element for optimal heat dissipation
– Not self-extracting
Type
AM PRO 50
AM PRO 75
AM PRO 100
Power (KW) app.
0.55
0.75
0.90
Power (PS) app.
0.50
0.75
1.00
Power consumption (A) app.
2.5
3.5
4.7
Power supply
220-230 V / 50 Hz
Protection class
IP X5
Sound level (dB) app.
60
60
65
Connections suction and pressure side
1.5″/50 mm
1.5″/50 mm
1.5″/50 mm
Weight (kg) app.
7.3
8.2
9.1
Dimensions (l x w x h) mm, app.
375 x 154 x 258
Flow rate
m3/h at 2 m pumping head
13.2
14.4
17.0
m3/h at 4 m pumping head
10.3
11.3
13.6
m3/h at 6 m pumping head
6.6
8.6
9.8
m3/h at 8 m pumping head
1.0
4.0
5.1
A motor protection switch is necessary for the operation of the pump.
The guarantee is void if the pump is used without a motor protection switch.
