The World’s Most Popular Reef LEDs
The newest innovation in the Prime line from AquaIllumination, the Prime 16HD Series brings more power and color where you want it, plus the freedom to use your smartphone as a controller.
No longer are you limited to using a fixed amount of power per channel, the Prime 16HD dynamically adjusts power available to each color, borrowing power from the colors you’re not utilizing. Giving you the most vivid spectrum your tank has ever seen. The Prime 16HD Series is capable of producing a limitless number of spectral combinations to fit your tank’s exacting needs…

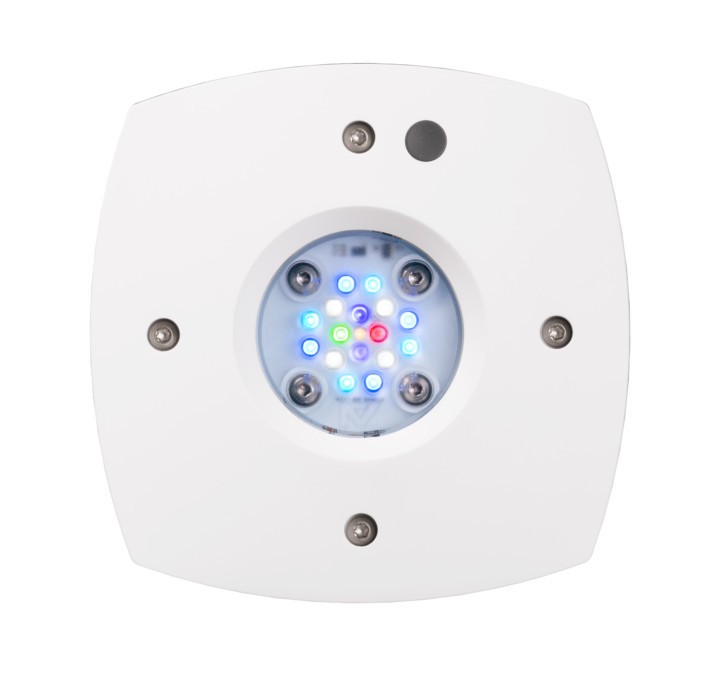

Prime™ 16HD Reef
Smart Reef LED
Huge Light in a Tiny Package
HD Power
No longer are you limited to using a fixed amount of power per channel, the Prime 16HD dynamically adjusts power available to each color, borrowing power from the colors you’re not utilizing. Giving you the most vivid spectrum your tank has ever seen.
HD Spectrum
The Prime 16 HD Series is capable of producing a limitless number of spectral combinations to fit your tank’s exacting needs.
Dedicated Moonlight
A dedicated moonlight channel simulates natural lunar color and intensity.
Simple Built-in Control
All AI devices include smart control standard. Use the myAI® app on any iOS or Android device to easily set up or program your AI equipment.
The World’s Most Popular Reef LEDs
The newest innovation in the Prime line from AquaIllumination®, the Prime 16 HD Series brings more power and color where you want it, plus the freedom to use your smartphone as a controller.
Dashboard
Each tank has a dashboard with easy-to-access quick keys turning your light on/off or changing the mode.
Schedule Mode is intuitive and so easy to program you´ll have plenty of time for more important tasks, like enjoying your corals…
Easy Setup, Manual Kelvin or Acclimation modes are available…
Tank Mount
Easily mount your AI Prime® on your rimmed or rimless tank with the adjustable Prime Tank Mount. The innovative ball joint makes it simple to tilt and turn your Prime to get the optimal light for your corals. Made of high-quality brushed aluminum it will look great on any setup. Comes in black or silver.
Hanging Kit
The Prime Hanging Kit from AI is an elegant way to suspend your light above your tank. The unique ball joint makes it a snap to tilt and turn your Prime for optimal light coverage. Made of high-quality brushed aluminum in black or silver.
Flex Arm
A silicone-coated flex arm makes for an attractive and sturdy solution for mounting your AI Prime™. Our most flexible mount for a rimmed or rimless ta nk. Wire-management clips are included.
Available in 30 & 46cm (12″ and 18″) lengths.
Power Output
With a spread of 60 x 60cm (24″ x 24″), the AI Prime® 16HD has a peak PAR of 100µMol at a depth of 62cm (24 inches), perfect for the small to medium reef tank. Drawing a maximum of 55 watts from the wall, it follows in the family’s efficient footsteps.
Optics
The AI Prime® 16HD comes standard with TIR lenses giving you the best balance of power and spread. Our lens optics are custom designed, boasting greater than 90% optical efficiency and including a diffuse exit surface to provide improved color blending.
LEDs
The AI Prime® 16HD utilizes the latest LED technology from leading manufacturers, arranged to provide the best performance.
4 – Cool White
4 – Blue
4 – Royal Blue
1 – Photo Red
1 – Green
1 – Violet
1 – UV
1 – Moonlight
Technical Specifications
Dimensions
Length 4.88in. (12.4cm)
Width 4.88in. (12.4cm)
Height 1.34in. (3.4cm)
Weight 0.95lbs. (0.43kg)
Power Specifications
Power Consumption 59W at full power
Universal Input Range 100 to 240VAC / 50-60Hz
Cable Length 20ft. (6.1m)
PSU Regulatory Compliance UL, CE & RoHS
What’s in the Box
AI Prime® 16HD Reef
Power Adapter
Quick Start Guide
