The
Blade Grow
offers immense power in a thin package.
Coral Grow
features a
LED mix that maximizes spectral peaks needed for coral photosynthesis. Use alone or augment with the
Blade Glow
for a color combination that fits your needs.

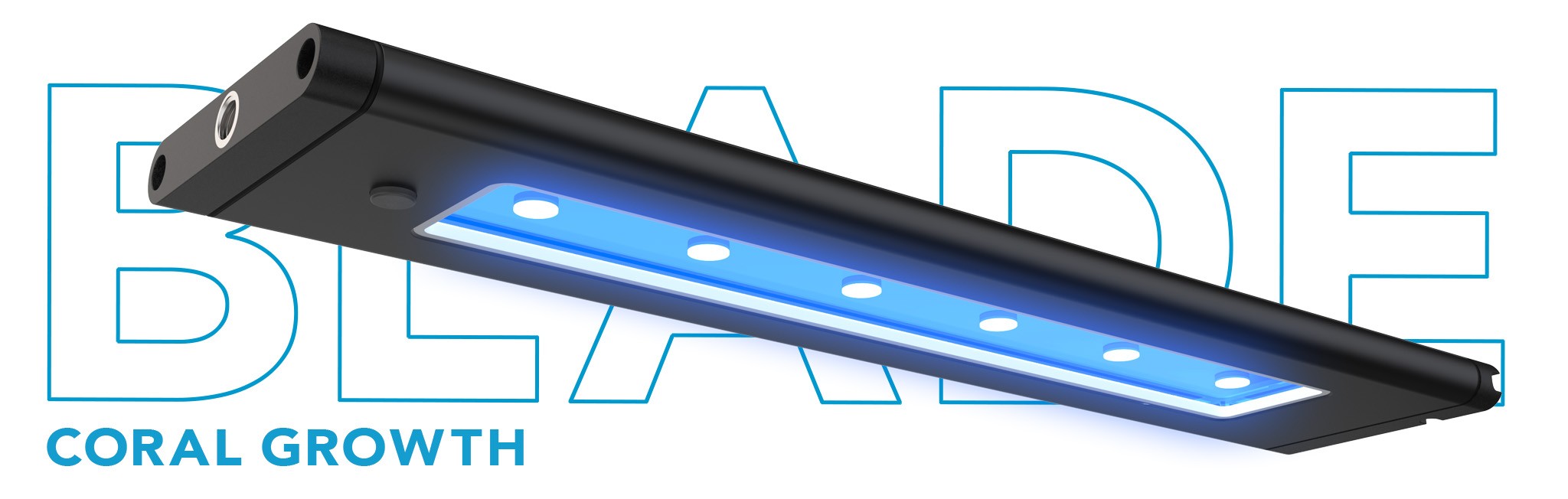

AI BLADE coral GROW (144cm/~120W)
The Blade Grow offers immense power in a thin package. Coral Grow features a LED mix that maximizes spectral peaks needed for coral photosynthesis. Use alone or augment with the Blade Glow for a color combination that fits your needs.
Spectrum
A balance of blue and white diodes efficiently addresses the photosynthetic needs of coral. The Blade Grow delivers output in the deep blue through blue range of the spectrum (400-500 nm) which is proven to be a highly effective marine spectrum range.
LEDs
The AI Blade Grow utilizes a cluster group configuration. Each Blade size includes roughly one cluster group per foot. Tight grouping and balanced diode placement contribute to the incredible balance and shimmer that the Blade platform delivers. The Blade Coral Grow includes the following 24 diodes per cluster group.
12 – Royal Blue
6 – Cool White
6 – Blue
EdgeField™ Optics
Optics are one of the most important components of an advanced lighting system. Edgefield™ technology incorporated in the Blade delivers even PAR, smooth color mixing and exceptional spread.
Edgefield optics, designed exclusively for the Blade, provide an incredible, 95 degree spread while achieving unmatched light mixing along the length of the blade. The specular exit surface presents a crisp and natural shimmer in your aquarium.
Bright-Sized
The Blade Coral Grow, Blade Coral Glow and Blade Freshwater are available up to 7 different sizes. Regardless of tank size or application, Blade has you covered.
Specifications
Lenght – 144cm
Power Consumption – 120W
Width – 7cm
Height – 1.6cm
Cable Lenght – 3m
PSU Regulatory Compliance UL, CE a RoHS
Universal Input Range – 100 to 240VAC/50-60Hz
Tank Rest Included
For Blades sized up to 99cm the Low Profile Tank Rest is included. The tank rest extends up to 11.5cm on either side of the blade (for a total of 23cm).
Mounting Clips Included
For Blades over 99cm Blade Mounting Clips are included. These clips are compatible with the AI HMS Single-Arm and HMS Hanging Kit rails. Different application? No problem, the Blade has many other mounting options available or use the clips with your custom mount.
Water Resistant
Blade is not only versatile but built to last in the harsh-environment of marine aquariums. Blade meets IP66 standards which indicate the highest protection against particles and a high level of protection against water.
Silent Running
The Blade incorporates a highly efficient heat sink design. Passive cooling means no fan and no air movement or fan noise. This makes the Blade ideal for lighting aquariums in living spaces where less noise is a big plus.
Simple Built-in Control
All AI devices include smart control standard. Use the myAI® app on any iOS or Android device to easily set up or program your AI equipment.
PAR
Carefully planned LED geometry coupled with Edgefield lens technology delivers amazing light efficiency. The Blade provides extremely even output over an impressive coverage area making for an easily usable light source that is both effective and attractive.
What’s in the Box?
AI Blade® Grow
Power Adapter
Blade Tank Rest Mounting Solution
