Aqua Illumination AI Axis 40 – new generation controllable centrifugal pump (~1500L/~20W)

PUMP IT UP

Introducing the all new AI Axis.

AI Axis
centrifugal pumps
offer full control, wireless smart device programming, DC motor quiet operation, and output calibration.
Available in 3 sizes

 …


Big pump features in pumps of all sizes.

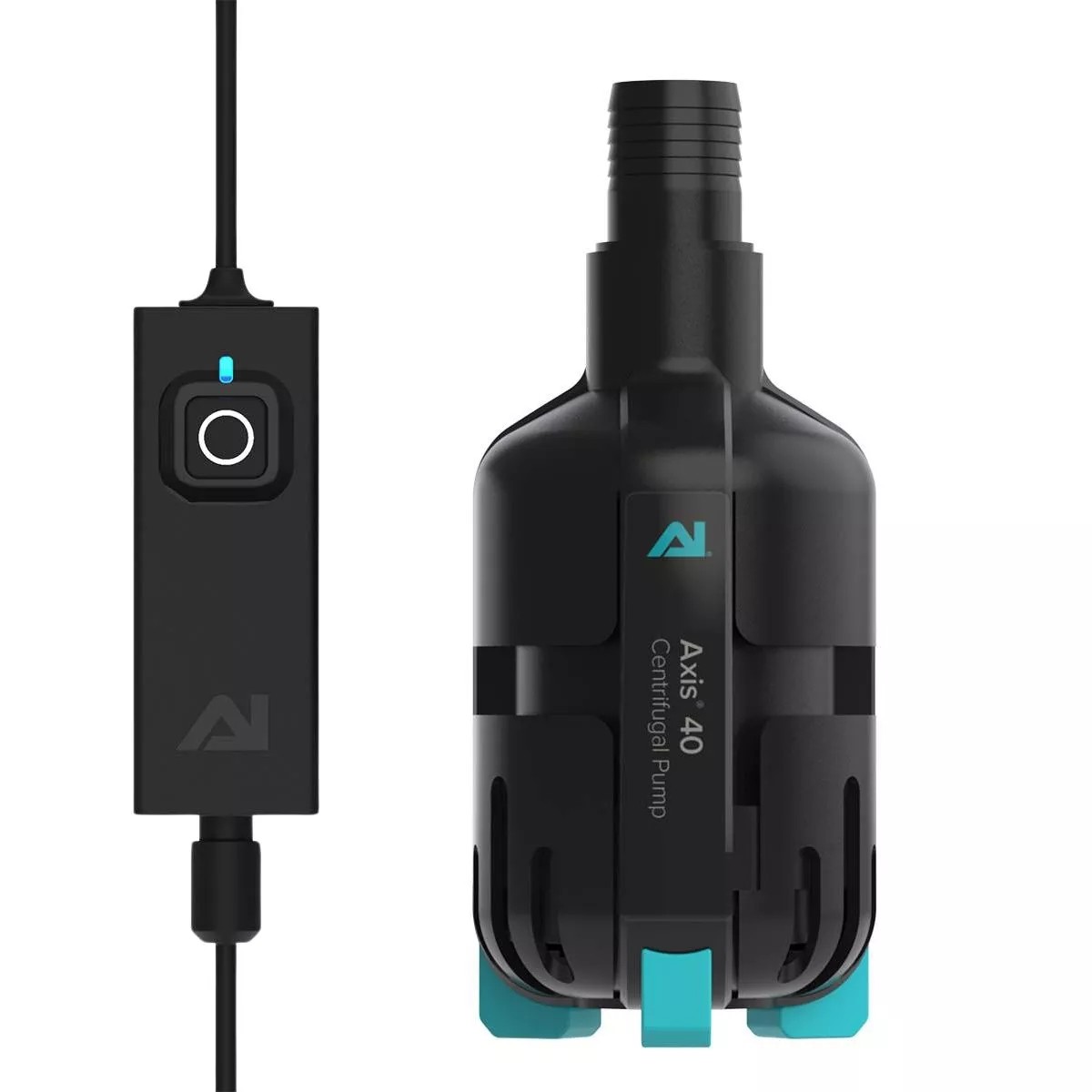

AI Axis® 40


The all-new Axis 20, 40, and 90 submersible return pumps bring big pump features to pumps of all sizes.

The fully controllable and programmable pumps cover the return needs of tanks ranging from less than 56 litres up to tanks as large as 340 litres in a package that is smaller than a soda can.

The compact form factor and bottom entry design make them the perfect upgrade pump for all-in-one style aquariums or any situation where space is limited.


Every Axis pump includes an in-line smart controller which makes for effortless programming and easy integration into your existing family of AquaIllumination devices without creating a “bird’s nest” of wires.

Users can wirelessly set up and program Axis pumps using either the myAI® or Mobius app on any iOS or Android device.


Using the convenient Neptune Systems MXM module , you can even connect and control using Apex Fusion .


Technical Specifications


Dimensions

Width 62 mm (2.44″)
Height 168,2 mm (6.625″)


Specifications

Max Head ≈ 2.8 m (≈5 ft.)
Flow Rate ≈1.500 lph (≈400 gph)
Recommended Tank Size Up to ≈150 litres
Power Consumption Variable, 20W max
Input 100–240VAC, 50-60Hz, 1A


What’s in the Box


AI Axis™ 40 Pump with Integrated Driver
Power Adapter with Universal Plug
Adapter Set
Quick Start Guide



Big Pump Features


Axis pumps offer full control, wireless smart device programming, DC motor quiet operation, and output calibration. Features that have traditionally been reserved for considerably larger and more expensive pumps.


These features allow for:

Coordinate Feed/Maintenance Modes – Turn all of your AI pumps on or off with a control button on a single pump .
Prevent back-siphon – With calibration set, instead of powering off, a pump will continue to run without producing flow , preventing siphoning, which could result in air bubbles when the pump resumes its scheduled operation!
With Axis you get exactly what you need, starting with Axis 40 which is perfect for tanks 150 litres or less.

Included Pump modes


Wide Range Compatibility

Small package. Large application.


Nozzle Sizes (Barbed):


Axis 20  Small: 12mm (0.5″) Large: 16mm (0.625″)
Axis 40  Small: 16mm (0.625″) Large: 20mm (0.75″)
Axis 90  Small: 20mm (0.75″) Large: 25mm (1″)


Simple Built-in Control

All AI devices include smart control standard. Choose from the myAI® or Mobius app on any iOS or Android device to easily set up or program your AI equipment. Add Neptune Fusion control via Apex with Apex and MXM module.
