Controller splash-water-proof
Product description

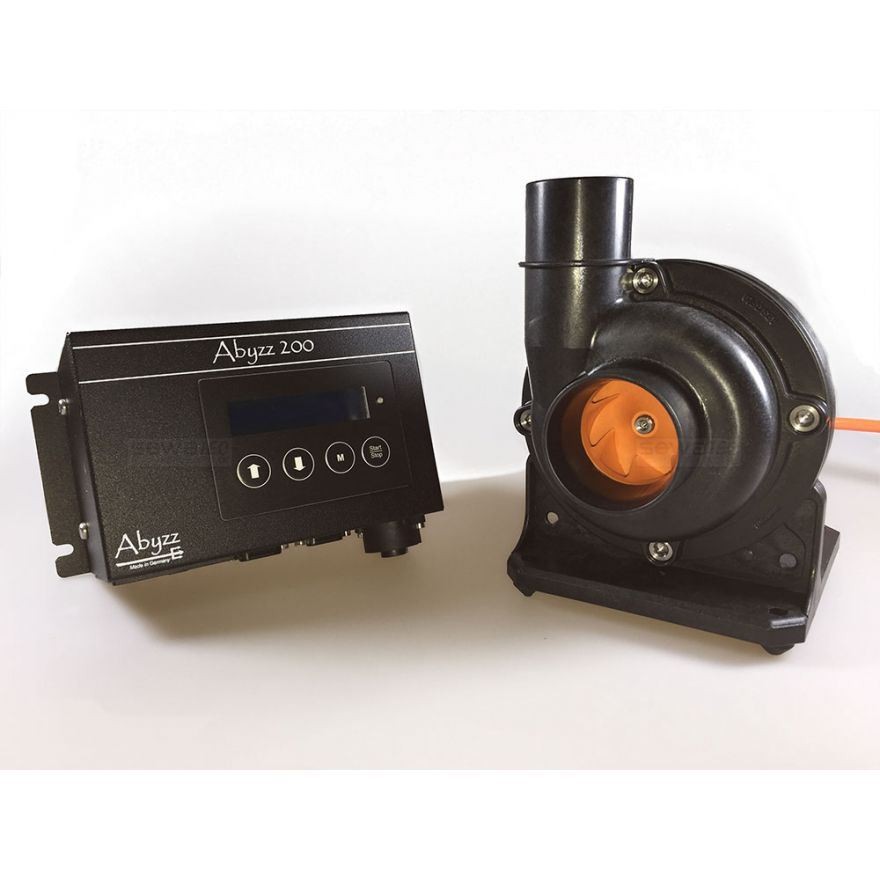

The innovative Abyzz A200 pump with its titanium
impeller consists of powerful and programmable
menu-controlled electronics (driver) and a
sinusoidal, three-phase synchronous motor (pump).
The efficiency factor of the motor is more than 90%,
which, along with the fact that you can adjust the
speed to meet your performance requirements,
makes it an energy-saving solution.
The integrated bearing flushing provides optimum
protection against calcination and, in conjunction
with the silicon carbide bearings and special hard
metal shaft, ensures low-maintenance operations.
The materials used are designed to have a long
lifetime and meet the highest requirements and
quality standards. This product was developed and
manufactured in Germany by venotec.
„Made in Germany“
Special features
– Variable speed range (0 – 100%)
– Programmable control system (e.g. wave and
random modes)
– Comprehensive safety functions (e.g. dry run,
temperature, and overcurrent protection)
– Soft startup
– Bus-enabled interface for peripheral devices
– Lockable plug contacts
– Low-noise operation
– Choice of 3m or 10m cable length
Applications
– Freshwater and seawater aquaristics
– Pond filter systems
– Creeks
Technical data
The pump pipes can be immersed or in a dry
position. Please note that this pump is not selfpriming.
Maximum flow rate : 17,000 l/h
Rated flow rate : 14,500 l/h
Discharge flow speed : max. 5.4m/s
: nom. 4.6m/s
Delivery height : max. 8.8m
Rated input : 4…200W
Operating voltage : 230V~, 50…60Hz
Ambient temperature : +2°C…+40°C
Maximum operating pressure : 1.5 bar
Maximum immersion depth : 2 Meter
Pump cable length : 3m oder 10m
Inlet/outlet connections : 50mm/40mm
(suitable for PVC/AVB adhesive fittings)
